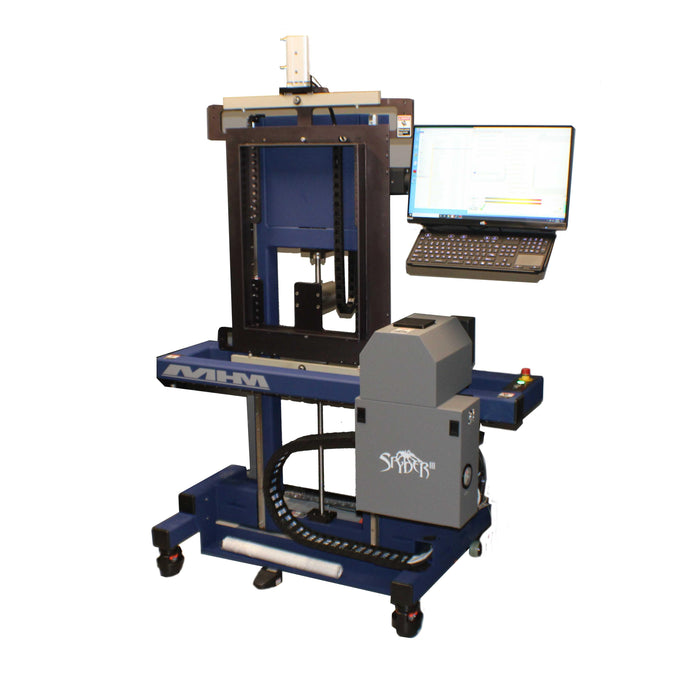

SPYDER III COMPUTER-TO-SCREEN SYSTEM (CTS)
The Spyder III simplify your pre-press workflow and work with precision with EXILE’s industrial Spyder III computer-to-screen system.
Equipped with a fast and reliable RIP software, full user control over your screen printing process is provided to create unparalleled prints with exceptional detail.
The Spyder family of products comes standard with 3 point registration system compatible with most presses. For MHM owners you can have the Spyder III with the pin registration giving you even more accuracy and time savings in set up.
BENEFITS
- Dual print settings including 900 dpi and 1200 dpi
- Twice the resolution of its predecessors
- Supports frame sizes up to 30” x 40”
- Capable of producing detailed & extremely accurate prints in under a minute
- Better density than most film and liquid ink CTS systems.
Dimensions: Spyder III – 32” x 49” x 61” (79 cm x 124 cm x 155 cm) | Weight: 505 lbs
EQUIPMENT SPECIFICATIONS
Model: Spyder II Computer-to-Screen System
Technology: Phase-change inkjet / Solid ink
Resolution: 600 dpi
Halftone Capability: 75 lpi @ 600 dpi
Imaging Speed: Approximately 2.4 sq ft/min (13 sq m/h) @ 600 dpi
Accuracy: .001” from screen to screen
Power Requirements: 120v/220v 50-60 HZ 15 amp
Compressed Air: Required
Network: Ethernet
Operating Temperature: 50°F to 86°F / 10°C to 30°C
Operating Humidity: 35% to 75% non-condensing
Ink Type: Solid block / Water dispersible photo resist mask
Typically ships directly from the manufacturer and is not in stock at SPSI.
