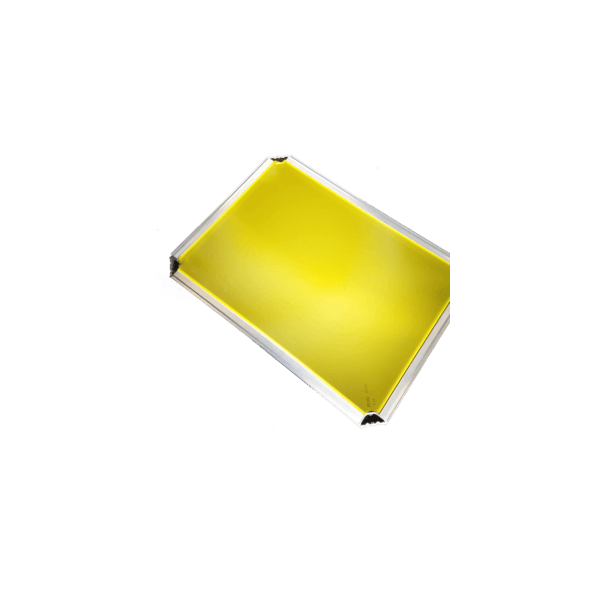

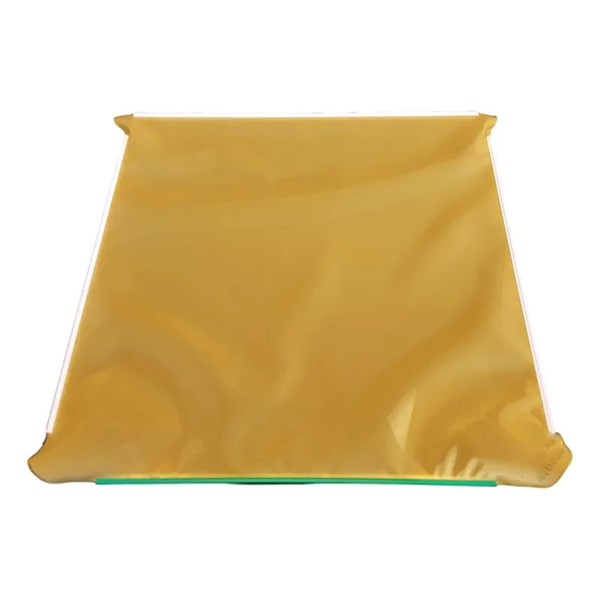

Shur-Loc Mesh Panel M3 23" x 31" - 110 Yellow
Precision-cut yellow screen printing mesh panel designed for 23" × 31" Shur-Loc M3 roller frames, providing fast installation, reliable tension, and consistent performance for textile screen printing.
Characteristics
The Shur-Loc Mesh Panel M3 23" x 31" – 110 Yellow is a precision-cut replacement fabric panel engineered specifically for 23" × 31" Shur-Loc M3 roller frame systems. Shur-Loc panels simplify the stretching process by providing mesh cut to the proper geometry for the compatible frame, helping printers achieve consistent tension without traditional stretching and gluing methods.
Shur-Loc states that its fabric panels can be stretched in approximately three minutes or less using its panel stretching process, helping reduce screen preparation time in production environments.
The 110-count yellow mesh is a versatile choice for general textile screen printing where good ink coverage and dependable image definition are required. Yellow-dyed mesh helps reduce light traveling through the mesh threads during exposure, which can improve stencil-edge quality compared with equivalent white mesh.
Shur-Loc's M3 panels are designed to be removable and reusable, allowing shops to change mesh configurations while continuing to use the same roller frame. The system is well suited for production environments where consistent tension, quick screen preparation, and reduced downtime are important.
Shur-Loc Original Fabric Panels are precision-cut replacement panels offered across a broad selection of mesh counts, allowing printers to select the appropriate mesh configuration for different artwork, ink systems, and production requirements.
- Designed for 23" × 31" Shur-Loc M3 roller frames
- 110-count yellow screen printing mesh
- Precision-cut panel for accurate frame fit
- Yellow-dyed mesh helps control light scatter during exposure
- Designed for fast and straightforward stretching
- Allows mesh to be tensioned to the appropriate working tension
- Removable and reusable panel construction
- Helps provide consistent screen tension
- Eliminates conventional adhesive-based mesh attachment
- Excellent choice for general textile printing
- Suitable for manual and automatic screen printing applications
- Allows the M3 roller frame to be reused with replacement panels
- Shur-Loc offers 23" × 31" M3 panels in a 110 yellow configuration
- Verify that the roller frame is a compatible 23" × 31" Shur-Loc M3 frame before installing the panel.
- Follow Shur-Loc's recommended stretching sequence and tension specifications for the particular mesh manufacturer supplied with the panel.
- Increase tension gradually and evenly around the frame to help maintain proper mesh alignment.
- Check final mesh tension with a calibrated tension meter before coating the screen.
- Yellow mesh may require a longer exposure than comparable white mesh because the dye reduces light transmission through the mesh threads.
- Select emulsion, stencil thickness, squeegee parameters, and ink viscosity according to the desired ink deposit and artwork.
- Maintain consistent off-contact, squeegee pressure, and print speed for repeatable production results.
- Release panel tension before removing or replacing mesh to help protect both the panel and roller frame.
- General-purpose textile printing
- Spot-color graphics
- Bold artwork
- Lettering and logos
- Athletic apparel
- Workwear
- Applications requiring a relatively generous ink deposit
- Manual screen printing presses
- Automatic screen printing presses
- Production shops using reusable Shur-Loc M3 roller frames
