Cavazutti Griff 4140 Gas Dryer 55" Belt 220v 5' In, 13' Heat, 5' Out
Limited Availability
$42,860.00
SKU CC-1380010
High-efficiency gas conveyor dryer engineered for DTG and screen printing production with powerful forced hot air circulation and precise curing control.

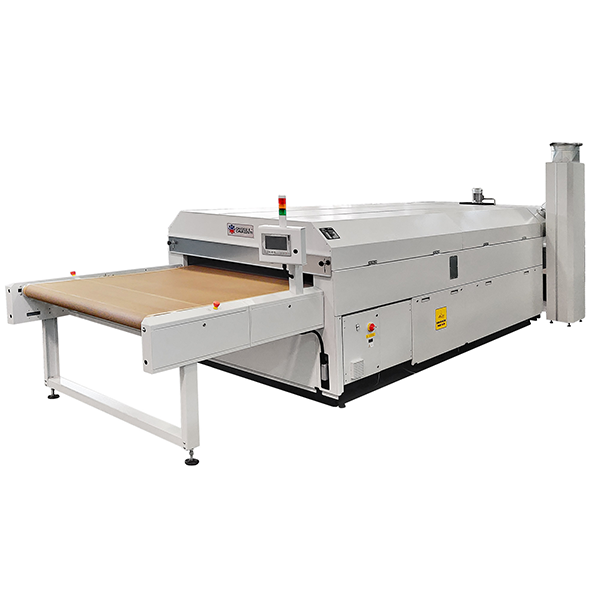

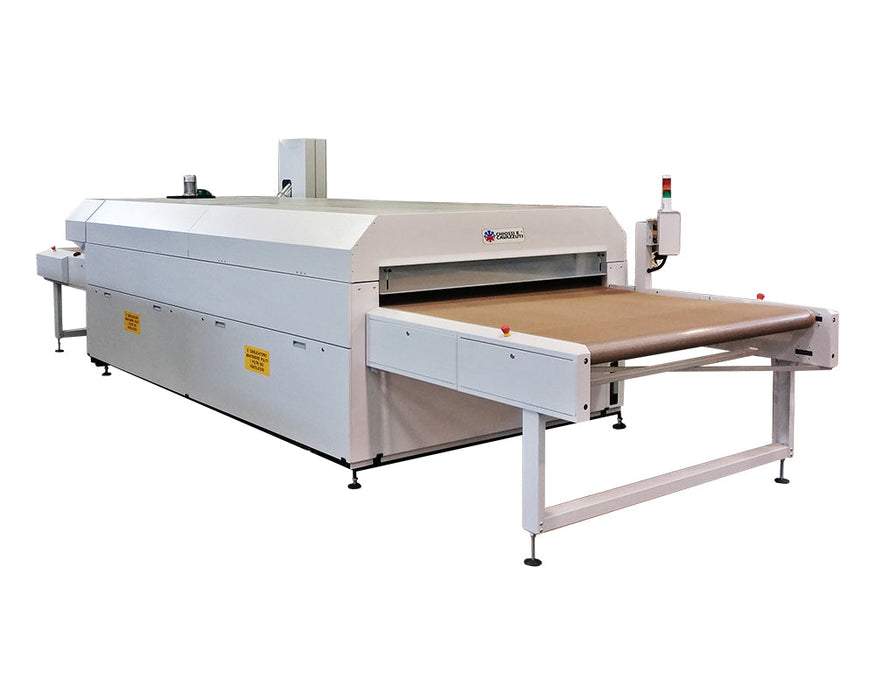

The Cavazzuti Griff 4140 Gas Dryer is a high-performance conveyor dryer designed for curing plastisol, water-based, and DTG inks in demanding production environments.
Featuring a 55" belt width, 13-foot heated chamber, and powerful forced hot air circulation system, the Griff 4140 delivers exceptional curing consistency while maximizing energy efficiency.
Its advanced burner and airflow design provide uniform heat distribution across the entire belt, helping decorators achieve reliable curing results on a wide variety of garments and textiles. The Griff series is known for its high-volume production capabilities, precise temperature control, and low operating costs, making it an excellent solution for growing and established print shops.

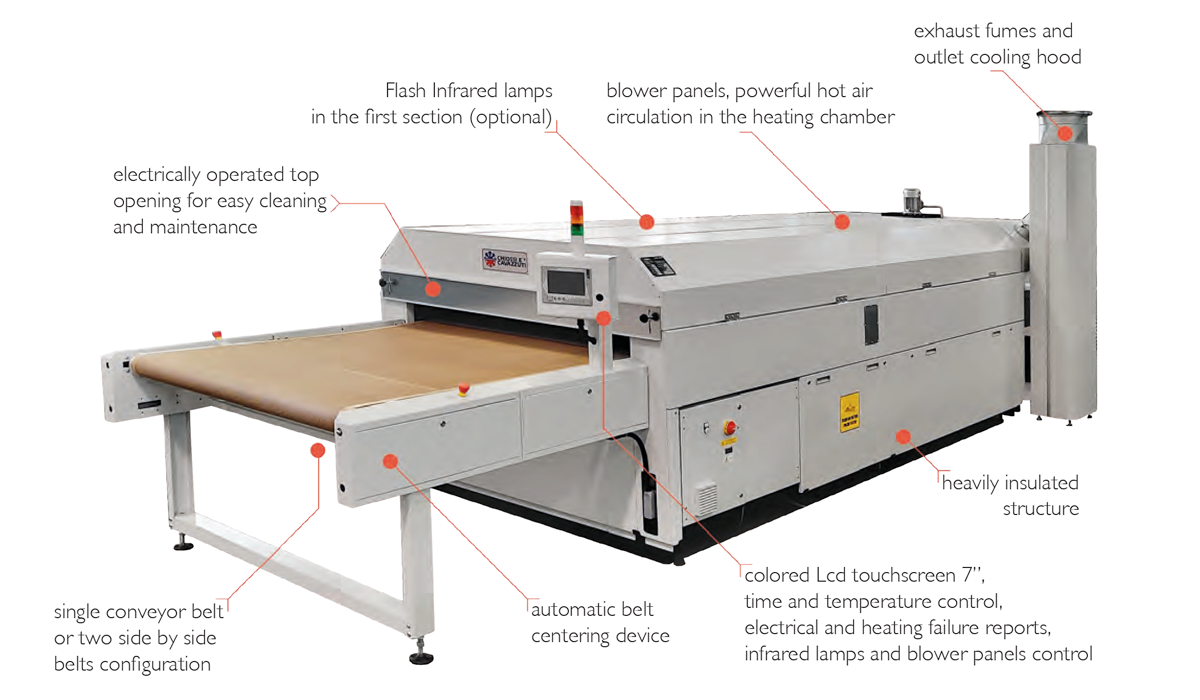

Features
▼
-
Forced Hot Air Circulation
Powerful airflow system provides consistent curing across the entire belt width. -
Multi-Ink Compatibility
Designed for DTG, water-based, and plastisol ink applications. -
Modulating Gas Burner
Provides efficient and precise temperature control. -
High-Speed Airflow System
Improves curing performance and overall productivity. -
Precision Thermostat
Maintains accurate curing temperatures throughout production. -
Insulated Construction
Reduces heat loss and improves energy efficiency. -
Low-Noise Operation
Reversed-blade fan system delivers airflow while minimizing noise. -
Variable Belt Speed
Adjustable conveyor speed accommodates different production requirements. -
Easy Maintenance Access
Electronic top-opening design simplifies cleaning and service. -
Advanced Controls
Touchscreen interface provides temperature and conveyor speed management. -
Optional Infrared Heating
Available for enhanced production flexibility. -
Production-Ready Design
Built for medium to high-volume garment decoration operations.
Specifications
▼
Model
Griff 4140
Manufacturer
Chiossi e Cavazzuti
Dryer Type
Gas Conveyor Dryer
Belt Width
55" (1400 mm)
Electrical Requirements
208V / 230V 3-Phase
Heat Chamber Length
13' (4000 mm)
Infeed Length
5'
Outfeed Length
5'
Burner Power
40 kW
Maximum Temperature
Up to 180°C (356°F)
Power Consumption
3.4 kW
Exhaust Requirement
1500 m³/h, Ø300 mm
Conveyor Configuration
Single Belt
Passage Height
130 mm
Approximate Weight
1,800 kg (3,968 lbs)
Applications
Screen Printing, DTG Printing, Water-Based Inks, Plastisol Inks
Best For
▼
Medium to High-Volume Printing
DTG Production
Water-Based Printing
Plastisol Ink Curing
Contract Decorators
Production Facilities
Consistent Curing
Gas-Efficient Operations
Precise Temperature Control
High Production Throughput
