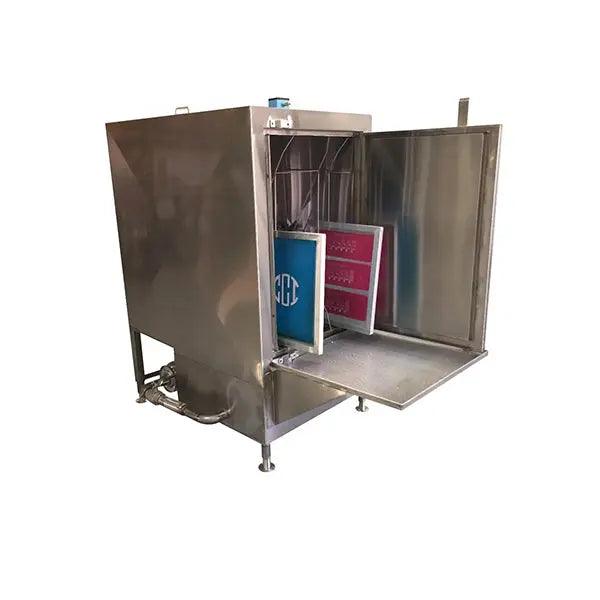

CCI 426D-SS Automatic Screen Washer
Heavy-duty automated stainless steel screen washer engineered for fast, efficient ink removal, featuring rotating spray jet arms, closed-loop chemical recirculation, and capacity for up to two screens measuring 41" x 48".
Characteristics
The CCI 426D-SS Automated Screen Washer is a professional screen cleaning system designed to automate ink removal and improve efficiency in high-production screen printing operations. By replacing much of the manual labor associated with washing ink from screens, the 426D-SS helps streamline screen room workflow while reducing operator contact with cleaning chemicals.
Designed to automatically remove ink from screens in less than three minutes, the 426D-SS provides fast, repeatable cleaning for shops processing a high volume of screens. Rotating spray jet arms distribute cleaning solution across the screens, providing thorough ink removal while reducing the time and labor required for manual cleaning.
The system features heavy-duty 14-gauge stainless steel construction for durability in demanding production environments. Top and side loading capabilities provide convenient screen access, while automatic safety door switches help protect operators during the cleaning cycle.
A closed-loop recirculation system collects and reuses cleaning chemistry throughout the washing process. This design helps reduce chemical consumption, waste, and employee chemical exposure while providing an efficient approach to automated screen cleaning.
The 426D-SS can accommodate up to two screens measuring as large as 41" x 48", making it suitable for a wide range of textile and graphic screen printing applications. The system also features a stainless steel pump, explosion-proof motor, and explosion-proof control panel.
Optional equipment is available to further improve screen room efficiency, including a sludge pump, three-stage filtration system, stainless steel tables, and custom screen or squeegee racks.
- Automated screen washing and ink removal system
- Removes ink from screens in less than three minutes
- Heavy-duty 14-gauge stainless steel construction
- Rotating spray jet arms for consistent screen cleaning
- Closed-loop chemical recirculation system
- Helps reduce cleaning chemical consumption
- Helps reduce employee exposure to cleaning chemistry
- Top and side loading capabilities
- Automatic safety door switches
- Explosion-proof motor
- Explosion-proof control panel
- Stainless steel pump
- OSHA-compliant design
- Handles up to two screens measuring 41" x 48"
- Designed for professional, high-production screen printing operations
- Optional sludge pump and filtration equipment available
- Custom screen and squeegee racks available
- Remove or card excessive ink from screens before placing them into the washer to reduce contamination of the recirculating cleaning solution.
- Position screens securely in the machine before beginning the automated cleaning cycle.
- Use screen cleaning chemistry approved for recirculating screen washing equipment and appropriate for the ink system being removed.
- Monitor the recirculating solution and replace or filter it as contamination increases to maintain effective cleaning performance.
- Consider adding the optional sludge pump and three-stage filtration system in high-volume operations to help manage contaminants and extend usable chemical life.
- Regularly inspect spray jets, pumps, filters, safety switches, and recirculation components as part of routine preventive maintenance.
- Follow CCI operating, chemical-handling, ventilation, electrical, and maintenance recommendations when installing and operating the equipment.
- The 426D-SS is primarily an automated ink-removal system. Complete screen reclaiming may require additional processes or equipment for emulsion and haze removal.
- High-production screen printing operations
- Automating screen ink removal
- Reducing manual screen washing labor
- Production screen rooms processing large quantities of screens
- Textile and graphic screen printing applications
- Operations looking to reduce chemical consumption through recirculation
- Shops looking to reduce operator contact with screen cleaning chemicals
- Screen rooms requiring repeatable, efficient cleaning workflows
